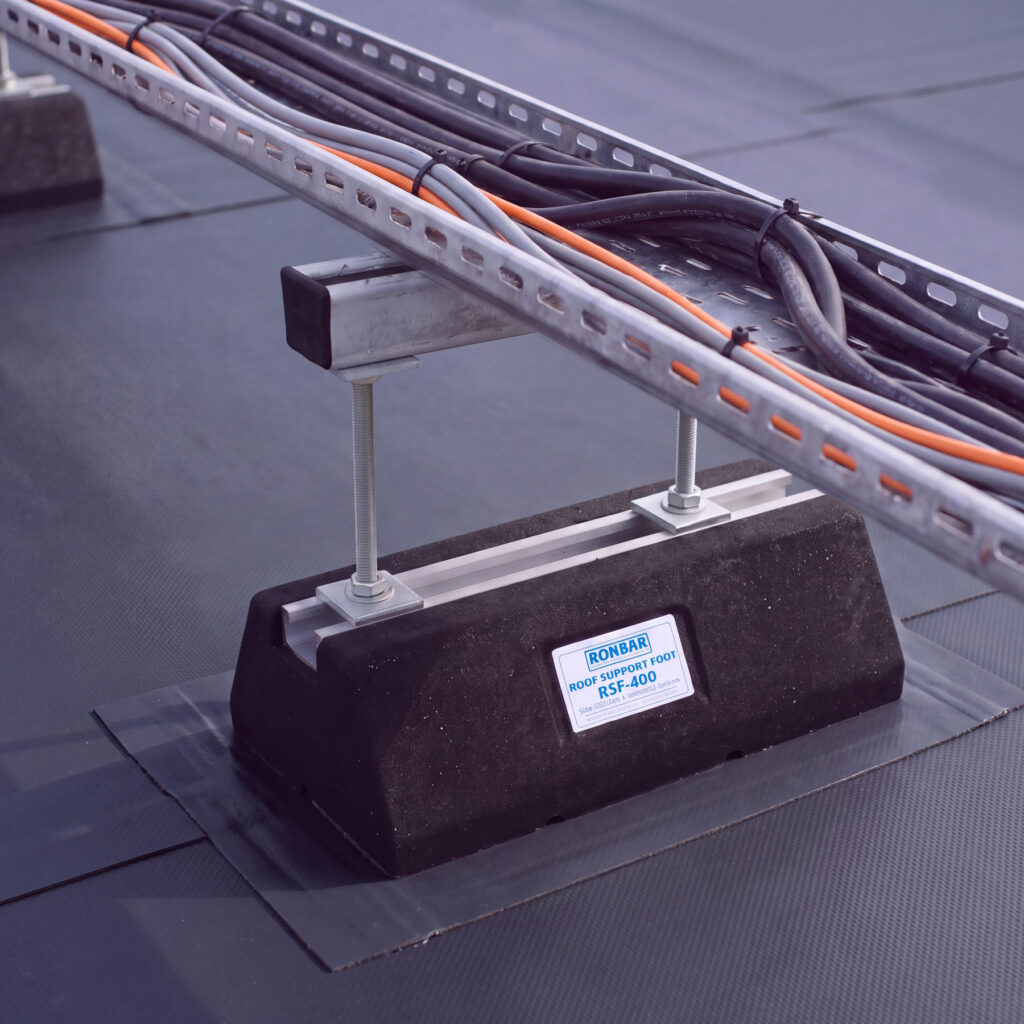

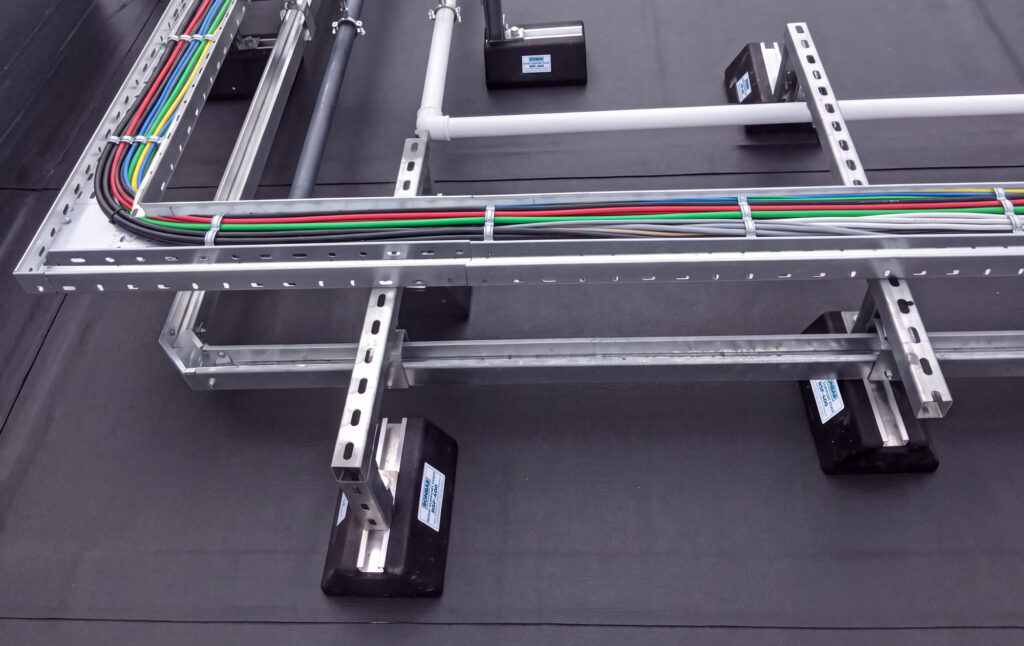

OUR BRAND-NEW ROOF SUPPORT RANGE OFFERS IDEAL SOLUTIONS FOR DUCTING, PIPEWORK, CABLE TRAYS AND HVAC INSTALLATIONS.
Roof support foot
Technical data
• Material: SBR-Recycled Rubber.
• Channel Insert: 41 x 21mm aluminium channel.
• Temp range: -35°C to +80°C.
• Anti-Vibration: Built-in noise & vibration absorption.
RSF-250
Technical data
Size: 250mm x 180mm x 100mm
Unit Weight: 2.4Kg
Max Loading Per Foot: 160.0Kg

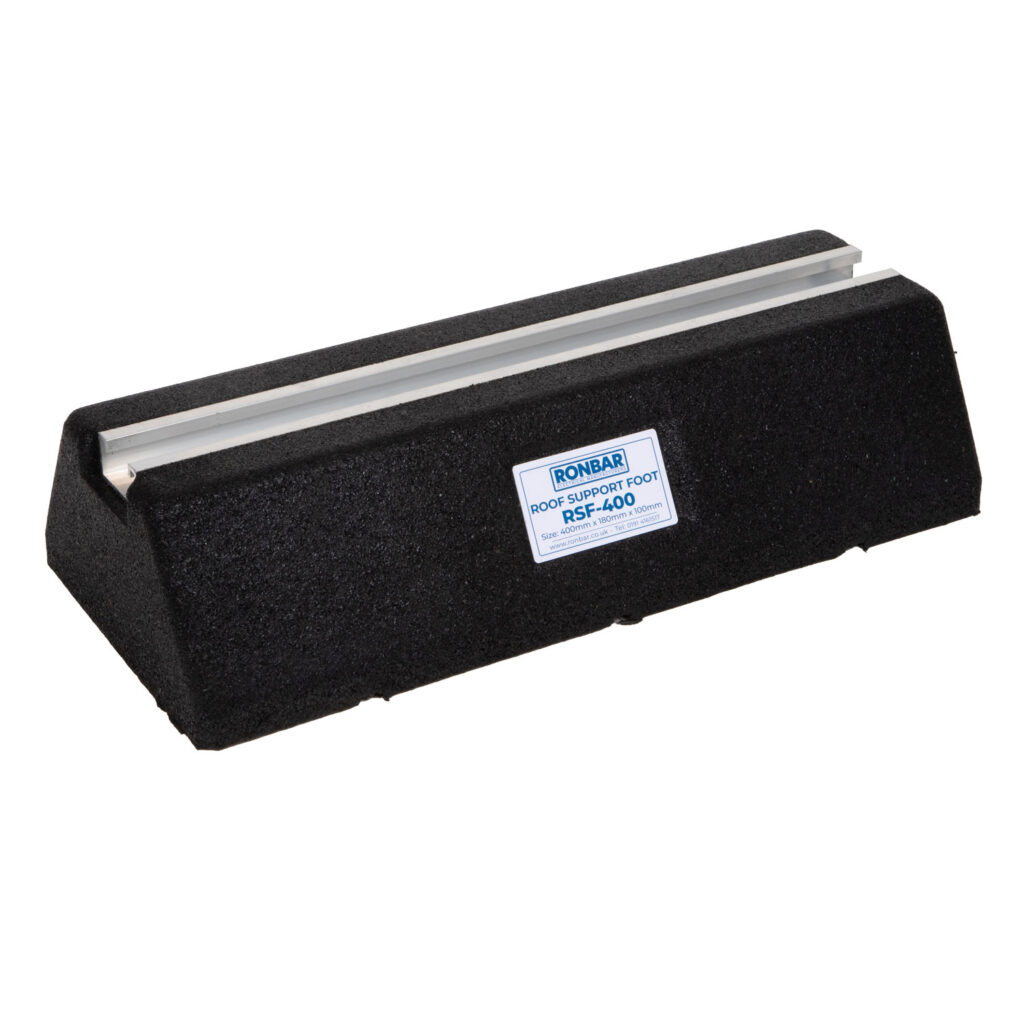

RSF-400
Technical data
Size: 400mm x 180mm x 100mm
Unit Weight: 3.9Kg
Max Loading Per Foot: 240.0Kg

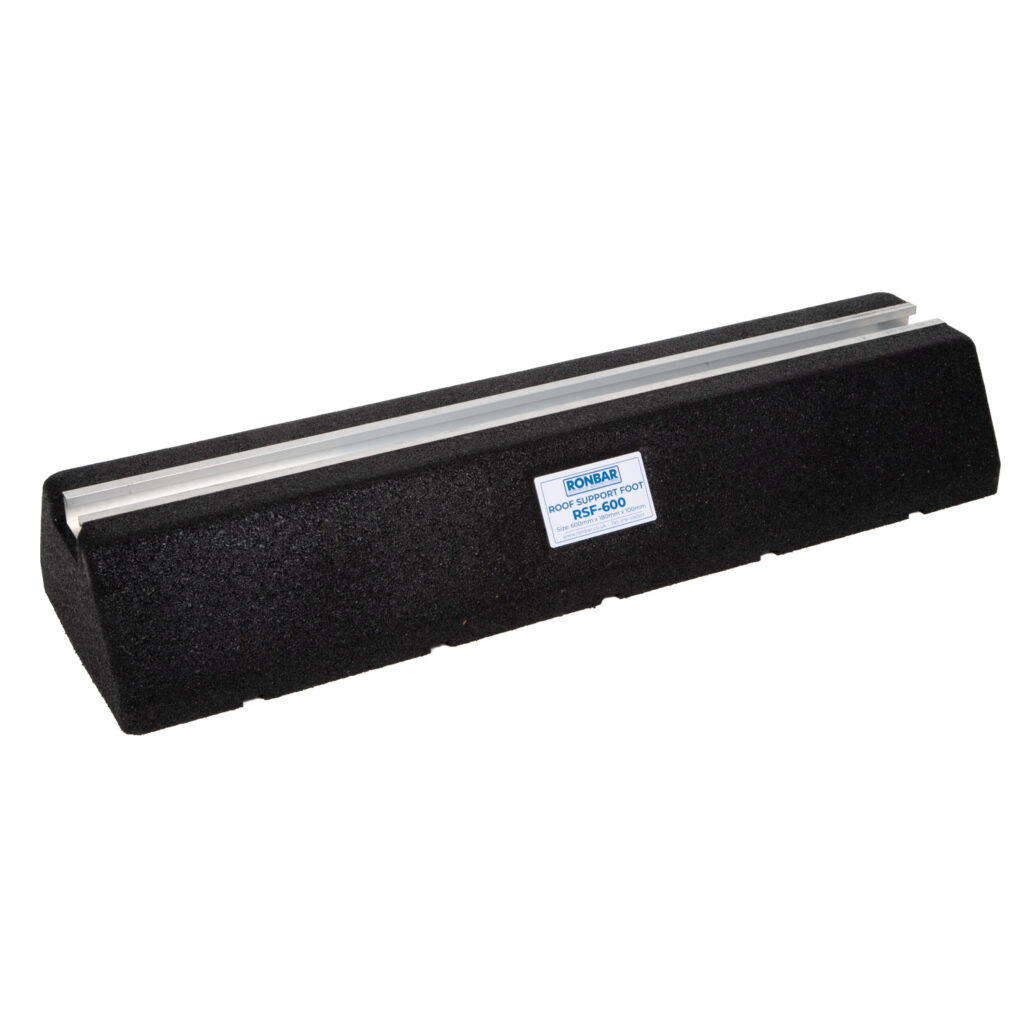

RSF-600
Technical data
Size: 600mm x 180mm x 100mm
Unit Weight: 5.8Kg
Max Loading Per Foot: 450.0Kg

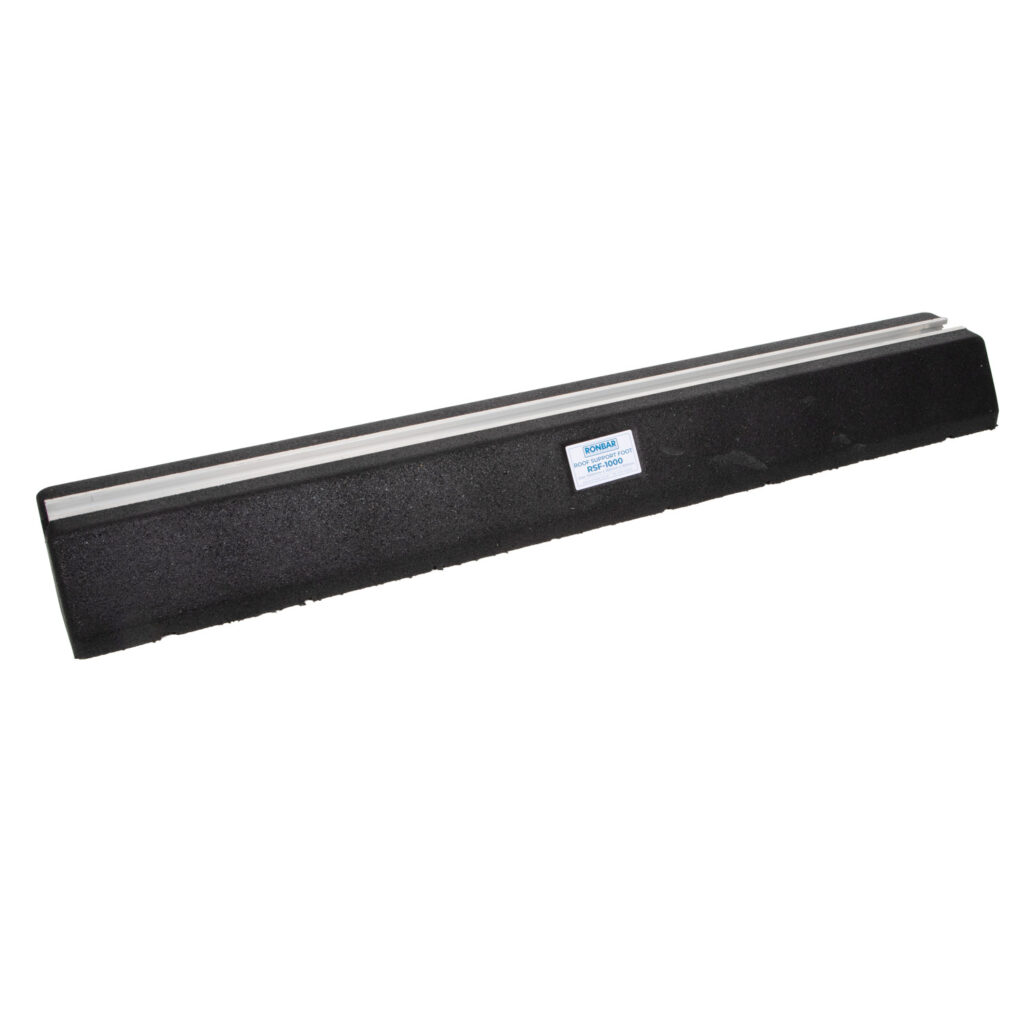

RSF-1000
Technical data
Size: 1000mm x 180mm x 100mm
Unit Weight: 9.7Kg
Max Loading Per Foot: 645.0Kg
